Bilstein 5100 Height-Adjustable Front Shock Pair for 03-09 4Runner, 07-09 FJ Cruiser and 05-15 Tacoma

Rating:
% of 100
$245.71
100+ In Stock
SKU
BILSTEIN 5100 ADJUSTABLE FRONT SHOCK PAIR
This item ships FREE on orders over $100
No Sales Tax in USA for Registered Customers

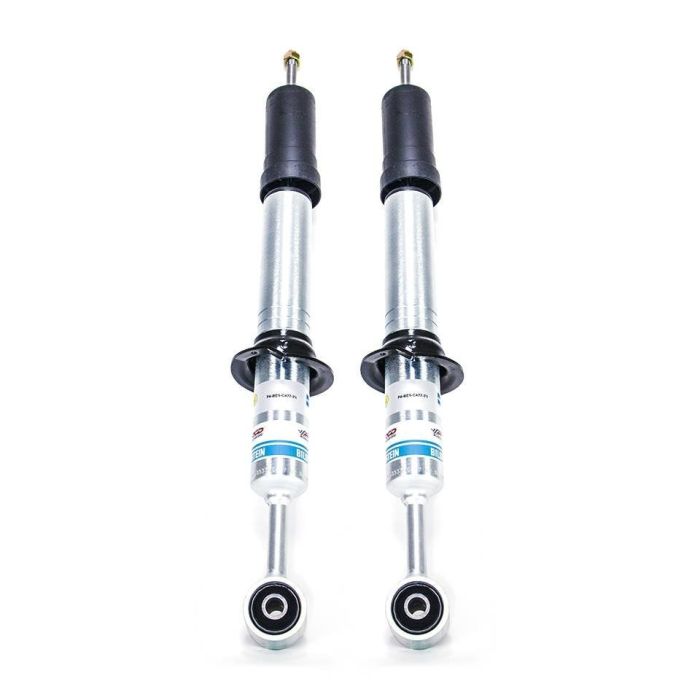

Bilstein 5100 Height-Adjustable Front Shock Pair for 03-09 4Runner, 07-09 FJ Cruiser and 05-15 Tacoma

We have these in two different versions. We have the original BE5-C477-T1 (24-280785) shock that has been around for years (built by Bilstein exclusively for Race Car Dynamics) as well as the new 24-239370 available directly from Bilstein. Upon inspection, we found that these two shocks appear identical.

BILSTEIN B8 5100 (Ride Height Adjustable) shock absorbers are designed for front Coilover style pickup and SUV suspensions. With the use of multiple snap ring grooves to position the spring seat at different heights, the vehicle's ride height can be changed anywhere between 0-2.75" depending on the application. 5100 Series shocks feature Bilstein's superior single tube high gas pressure design for the utmost in consistent fade-free performance and long life.

Bilstein's patented Digressive self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed. Offering super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride. Zinc-plated steel body with Triple-C-Technology coating.

These high-performance Bilstein front struts have 4 spring seat positions you can choose that provide approximately 0-2.5" of lift in increments. They work with your factory coils although some customers run them with some of the performance coils we carry as well.

Good for lifting, leveling or compensating for winches, snowplows, etc. Performance valved to provide better handling. We can assemble coils on these for easy installation, see that option below.

The struts don’t come with new stem cushions or washers; you can re-use your existing cushions and washers or we offer new ones.

NOTE: Please click the 'Specifications' tab for a summary of all available options.

These struts are build-to-order items. A cancellation fee of 20% will be charged if the order is cancelled after strut assembly begins.



⚠ WARNING:  Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • An extremely affordable and practical alternative to coil spring spacers
  • BILSTEIN's superior monotube design
  • Utilizes the vehicle's stock front coil springs
  • Zinc finish with multi-layer unique BILSTEIN coating for extreme protection
  • Self-adjusting deflective disc valving with independent rebound and compression tuning
  • Limited Lifetime Warranty
  • Sold as a pair

AVAILABLE OPTIONS:

WOR-307030 Fully Assembled option includes (2) BE5-C477-T1 struts with Eibach E30-82-073-01-20 springs, new strut mounts, and assembly labor.
WOR-307032 Fully Assembled option includes (2) BE5-C477-T1 struts with Eibach E30-82-007-03-20 springs, new strut mounts, and assembly labor.
WOR-307033 Fully Assembled option includes (2) BE5-C477-T1 struts with 620-lb Wheeler's Off-Road springs, new strut mounts, and assembly labor.
WOR-307034 Fully Assembled option includes (2) BE5-C477-T1 struts with 590-lb Old Man Emu 2883 springs, new strut mounts, and assembly labor.
WOR-307035 Fully Assembled option includes (2) BE5-C477-T1 struts with 590-lb Old Man Emu 2884 springs, new strut mounts, and assembly labor.
WOR-307036 Fully Assembled option includes (2) BE5-C477-T1 struts with 590-lb Old Man Emu 2885 springs, new strut mounts, and assembly labor.
WOR-307037 Fully Assembled option includes (2) BE5-C477-T1 struts with 660-lb Old Man Emu 2886 springs, new strut mounts, and assembly labor.
WOR-307038 Fully Assembled option includes (2) BE5-C477-T1 struts with 590-lb Old Man Emu 2887 springs, new strut mounts, and assembly labor.
WOR-307039 Fully Assembled option includes (2) BE5-C477-T1 struts with 590-lb Old Man Emu 2888 springs, new strut mounts, and assembly labor.
WOR-307040 Fully Assembled option includes (2) 24-239370 struts with Eibach E30-82-073-01-20 springs, new strut mounts, and assembly labor.
WOR-307042 Fully Assembled option includes (2) 24-239370 struts with Eibach E30-82-007-03-20 springs, new strut mounts, and assembly labor.
WOR-307043 Fully Assembled option includes (2) 24-239370 struts with 620-lb Wheeler's Off-Road springs, new strut mounts, and assembly labor.
WOR-307044 Fully Assembled option includes (2) 24-239370 struts with 590-lb Old Man Emu 2883 springs, new strut mounts, and assembly labor.
WOR-307045 Fully Assembled option includes (2) 24-239370 struts with 590-lb Old Man Emu 2884 springs, new strut mounts, and assembly labor.
WOR-307046 Fully Assembled option includes (2) 24-239370 struts with 590-lb Old Man Emu 2885 springs, new strut mounts, and assembly labor.
WOR-307047 Fully Assembled option includes (2) 24-239370 struts with 660-lb Old Man Emu 2886 springs, new strut mounts, and assembly labor.
WOR-307048 Fully Assembled option includes (2) 24-239370 struts with 590-lb Old Man Emu 2887 springs, new strut mounts, and assembly labor.
WOR-307049 Fully Assembled option includes (2) 24-239370 struts with 590-lb Old Man Emu 2888 springs, new strut mounts, and assembly labor.
BIL-24-239370-X2 Unassembled option is a set of (2) 24-239370 Bilstein struts only.
BIL-BE5-C477-T1-X2 Unassembled option is a set of (2) BE5-C477-T1 (24-280785) Bilstein struts only.

TOYOTA TACOMA
(2005-2015)


2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
TOYOTA 4RUNNER
(2003-2009)


2003 Toyota 4Runner
2004 Toyota 4Runner
2005 Toyota 4Runner
2006 Toyota 4Runner
2007 Toyota 4Runner
2008 Toyota 4Runner
2009 Toyota 4Runner
TOYOTA FJ CRUISER
(2007-2009)


2007 Toyota Fj Cruiser
2008 Toyota Fj Cruiser
2009 Toyota Fj Cruiser

Bilstein Warranty Image

Bilstein Warranty Policy - North America

The following limited warranty from BILSTEIN applies to all purchasers (hereinafter “Purchaser”) who have purchased a BILSTEIN aftermarket product (hereinafter “Product”) in North America (hereinafter “NA”) from a BILSTEIN distributor. This warranty is non-transferable.

BILSTEIN warrants that Products purchased from a BILSTEIN distributor in NA shall be free from defects in design, material and workmanship for as long as the original purchaser owns the product and it is installed on the original vehicle for which the product was purchased.

Within the warranty period, the authorized BILSTEIN distributor shall be obligated to repair or replace a defective Product at its discretion. This does not apply if the product has been used improperly and contrary to BILSTEIN’s instructions. Further claims for defects by Purchaser are excluded.

To exercise its warranty rights, Purchaser must contact the BILSTEIN distributor in NA from whom the Product was originally purchased to request the return of the Product and the issue of a return goods authorization (RGA). If the Product is to be returned, Purchaser is obligated to package the Product safely for transportation, include a copy of the invoice as proof of purchase, affix the RGA number visibly and legibly to the outside of the package and return the product to the BILSTEIN distributor at its own expense. Payment by BILSTEIN or the BILSTEIN distributor of import costs (customs or other government fees, tariffs, handling fees) incurred in connection with international returns is expressly excluded.

BILSTEIN or the BILSTEIN distributor shall under no circumstances be liable for consequential damages (such as, but not limited to, labor charges and/or lost profits) resulting from the use, misuse or inability to use the Product or from defects of the Product. This limitation of liability does not apply to injuries to persons, in the event of willful intent or gross negligence, or if a material, contractual obligation was violated.

In the event of improper use, in particular installation in vehicles not recommended by BILSTEIN, track racing or off-road use (unless the product is expressly designed for such use), all warranty claims are void.


Warranty Restrictions

The limited warranties set forth above do not cover normal wear and tear and are non-transferable.

Exclusions include:

  • Surface finish, boot or mounting hardware such as, but not limited to, rubber bushings, bearings, valve shims
  • Original equipment shock absorbers - which are warranted by the vehicle manufacturer
  • Damage caused by improper installation
  • Damage caused to non-motorsports product as a result of racing, driving competition or off-road use
  • Use on modified or other than Bilstein-recommended vehicles
  • Bent or broken rods showing abuse or abnormal wear
  • Cosmetic damage such as scratches, notches, dents and corrosion
  • Damage to products which have been altered without the written approval of BILSTEIN or the BILSTEIN distributor
  • Damages caused by road hazards, accidents, improper use, water, flooding, fire or other natural phenomena or external causes

Warranty Categories

BILSTEIN warrants to the original retail purchaser that, for the periods specified below, each gas pressure shock shall be free from defects in material and workmanship. This warranty is non-transferable and does not cover normal wear and tear.

Proof of purchase is required to process warranty. Any implied warranty of merchantability, fitness or fitness for particular purpose, except as may be prohibited by applicable law, is likewise limited in duration to timeframe specified below, from the date of original retail purchase.

Some States do not allow limitations on how long an implied warranty lasts so the above limitation may not apply to you.


Limited Lifetime Warranty

  • B4 OE Replacement
  • B3/B4 OE Replacement Air Suspension (Spring and Strut)
  • B6 / B6 Performance
  • B8 Performance Plus
  • B12 Series
  • B14 (PSS)
  • B16 (PSS9 & PSS10)
  • B6 4600
  • B8 5100
  • B8 5100 (Ride Height Adjustable)
  • B8 5112
  • B8 6112

Limited 2 Year Warranty

  • B1 Air Compressor (only)
  • B8 5160
  • B8 5162
  • B8 8100
  • B8 8112
  • B3 Coil Springs
  • Steering Racks

Limited 90-Day Warranty

  • B1 (excluding Air Compressor)
  • Clubsport
  • Motorsport
  • B8 5125
  • B8 5165
  • M 7100
  • B8 8125
  • B8 9200
  • B8 9300
  • Service Repairs

To view BILSTEIN's complete Warranty Promise and Processing Procedures, please visit the BILSTEIN Warranty page.
