Trail-Gear Front Leaf Spring Kits for 79-95 Toyota Pickup, 85-95 4Runner & 95-04 Tacoma

Toyota Front Leaf Spring Kit

Super Flex Front Leaf Springs

Our front springs feature a full military wrap on the front and the 1/4 wrap on the rear. Spring rate is 220 lbs per inch. Leaf pack is 6 leaves. Springs are 47" long as measured along the top leaf. Pin to center of front mount is 22" and pin to center of the shackle mount is 25". New poly bushings and left side spring pad are included with springs.

Note: These springs are not a direct OEM replacement, installation requires the relocation of some mounting brackets.

Available in the following sizes:

  • 3" Springs, Front, 110015-1-KIT
  • 4" Springs, Front, 110011-1-KIT
  • 5" Springs, Front, 110013-1-KIT

WARNING: Cancer and Reproductive Harm -


  • Full Military Wrap on the Front and 1/4" Wrap on the Rear
  • Includes New Poly Bushings and Left Side Spring Pad
  • Heavy Duty Springs Recommended for V6 and V8 Applications
  • Sold in Pairs
Please Note! These springs are not a direct OEM replacement! Installation requires the relocation of some mounting brackets!

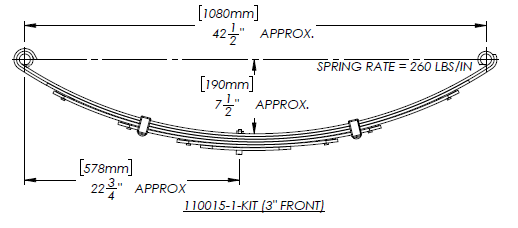

  • 3" Front Leaf Springs
  • Free Length (From Spring Eye Centers): 1080 mm (~42-1/2")
  • Military Wrap Eye to Center Pin: 578 mm (~22-3/4")
  • Free Height: 190 mm (~7-1/2")
  • Spring Rate: 260 lb/in

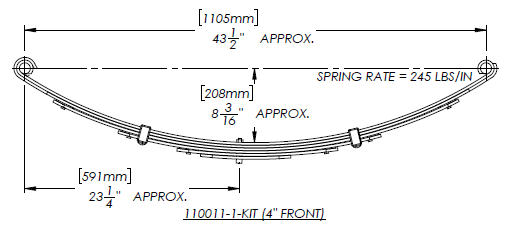

  • 4" Front Leaf Springs
  • Free Length (From Spring Eye Centers): 1105 mm (~43-1/2")
  • Military Wrap Eye to Center Pin: 591 mm (~23-1/4")
  • Free Height: 208 mm (~8-3/16")
  • Spring Rate: 245 lb/in

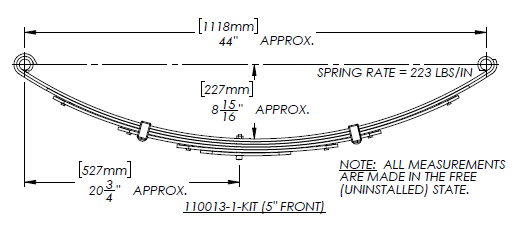

  • 5" Front Leaf Springs
  • Free Length (From Spring Eye Centers): 1118 mm (~44")
  • Military Wrap Eye to Center Pin: 527 mm (~20-3/4")
  • Free Height: 227 mm (~8-15/16")
  • Spring Rate: 223 lb/in

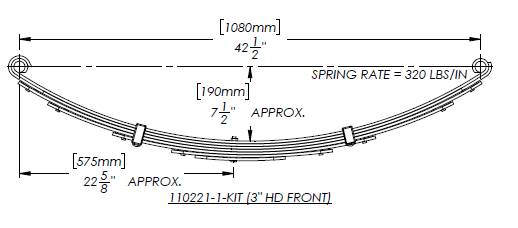

  • 3" Heavy Duty Front Leaf Springs
  • Free Length (From Spring Eye Centers): 1080 mm (~42-1/2")
  • Military Wrap Eye to Center Pin: 575 mm (~22-5/8")
  • Free Height: 190 mm (~7-1/2")
  • Spring Rate: 320 lb/in

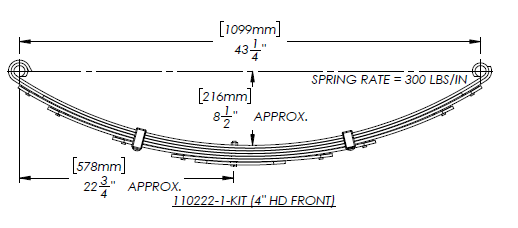

  • 4" Heavy Duty Front Leaf Springs
  • Free Length (From Spring Eye Centers): 1099 mm (~43-1/4")
  • Military Wrap Eye to Center Pin: 578 mm (~22-3/4")
  • Free Height: 216 mm (~8-1/2")
  • Spring Rate: 300 lb/in

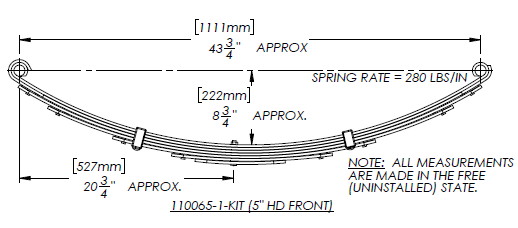

  • 5" Heavy Duty Front Leaf Springs
  • Free Length (From Spring Eye Centers): 1111 mm (~43-3/4")
  • Military Wrap Eye to Center Pin: 527 mm (~20-3/4")
  • Free Height: 222 mm (~8-3/4")
  • Spring Rate: 280 lb/in


1979 Toyota Pickup
1980 Toyota Pickup
1981 Toyota Pickup
1982 Toyota Pickup
1983 Toyota Pickup
1984 Toyota Pickup
1985 Toyota Pickup
1986 Toyota Pickup
1987 Toyota Pickup
1988 Toyota Pickup
1989 Toyota Pickup
1990 Toyota Pickup
1991 Toyota Pickup
1992 Toyota Pickup
1993 Toyota Pickup
1994 Toyota Pickup
1995 Toyota Pickup


1985 Toyota 4Runner
1986 Toyota 4Runner
1987 Toyota 4Runner
1988 Toyota 4Runner
1989 Toyota 4Runner
1990 Toyota 4Runner
1991 Toyota 4Runner
1992 Toyota 4Runner
1993 Toyota 4Runner
1994 Toyota 4Runner
1995 Toyota 4Runner


1995 Toyota Tacoma
1996 Toyota Tacoma
1997 Toyota Tacoma
1998 Toyota Tacoma
1999 Toyota Tacoma
2000 Toyota Tacoma
2001 Toyota Tacoma
2002 Toyota Tacoma
2003 Toyota Tacoma
2004 Toyota Tacoma

1. Install bushings into the springs using polyurethane-safe grease. If applicable, install the sleeves into the bushings.

2. Mount the springs to the vehicle. The end with the military wrap should be at the front.

3. Check to make sure the long side of the bolts on the spring clamps are pointed towards the inside of the vehicle.

4. Fully cycle the suspension and verify that no part of the springs interfere with other suspension components (e.g. shocks). Also verify that the brake lines are long enough and do not stretch at maximum droop or get pinched by other components. In some instances, leaf spring clamps may need to be removed or relocated to avoid interference with other components.

5. If you have any questions or concerns, please e-mail your questions to
or call us at 559.549.6737.
