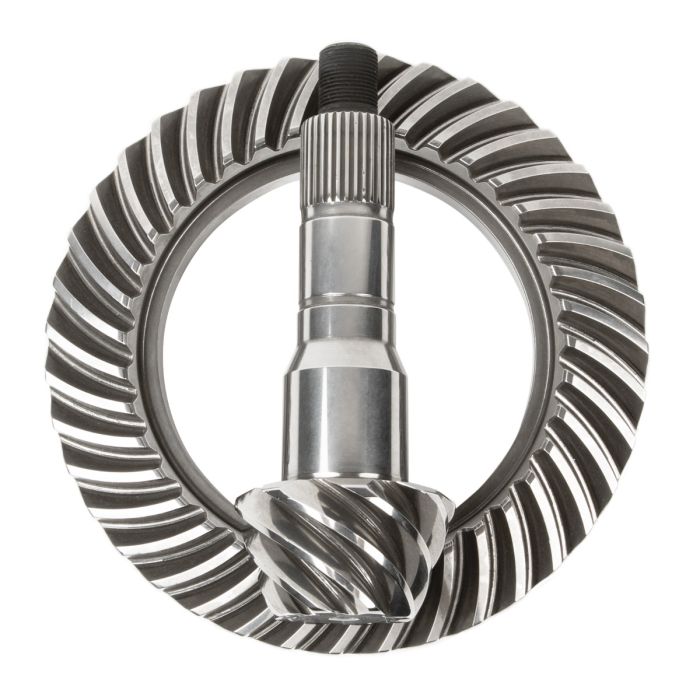

Longfield Super Finish Toyota 8.75-in Ring and Pinion Gears
Longfield Super Finish Toyota 8.75-in Ring and Pinion Gears
Looking for a Ring & Pinion that you can rely on even on the most punishing trails? Trail-Gear is proud to offer Longfield Super Finish Ring & Pinion Gears. These are the very same gears that have won multiple championships in professional desert racing & competitive rock crawling circuits and have proven themselves on some of the most grueling off-road courses in the world.
What makes Longfield Ring & Pinion Gears the best on the market?
Better Materials: We use heat-treated 8620 chromoly tool steel for strength and wear resistance.
Better Gear Teeth: We only use the 5-cut process on the ring gear teeth instead of the cheaper 2-cut process used by most other aftermarket vendors. The 5-cut process results in teeth with a tapered tooth profile. This increases contact area and spreads the contact load along a wider area, resulting in less stress on the ring gear teeth.
Better Machining: The gear teeth are cut using Gleason CNC hobbing machines & cutters. Gleason gear-cutting technology produces an unprecedented level of accuracy and surface finish, which allows the gears to transmit more torque and improve fuel efficiency. The higher accuracy and surface finish also produces a quieter-running gear set, which means they will work great on the daily driver too.
Better Finish: Our Super Finish gears allow you to skip the break-in period and get on the trail now! The aerospace-grade REM® Isotropic Super Finishing (ISF®) process removes the microscopic peaks in the material and creates a surface on the ring and pinion gears with a roughness of less than 10 µin average surface roughness. This means that there is less friction between the gears, reducing wear by 95% and allowing the gears and bearings to run cooler and last longer.
Better Value: We go directly to Tier 1 OEM manufacturers to have gears made to our exact specifications. By cutting out the middlemen, we can offer the highest quality gears at a competitive price.
On Toyota trucks we recommend 4.88's for 33" tires and 5.29 for 35" and larger.
On Toyota trucks we recommend 4.88's for 33" tires and 5.29 for 35" and larger.
AVAILABLE OPTIONS:
LF-312717 - Longfield Super Finish Toyota 8.75-in Ring and Pinion Gears - 4.88
LF-312718 - Longfield Super Finish Toyota 8.75-in Ring and Pinion Gears - 5.29
COMPATIBLE LOCKERS
|
Part Number |
Description |
ARB |
|
LF-312717 |
Longfield Super Finish 4.88 Toyota 8.75" Ring & Pinion Gears |
ARB-RD232 |
|
LF-312718 |
Longfield Super Finish 5.29 Toyota 8.75" Ring & Pinion Gears |
ARB-RD232 |
WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Made from tool-grade 8620 steel and heat-treated for maximum strength and wear resistance.
- The gear teeth are cut using Gleason CNC hobbing machines & cutters. Gleason gear-cutting technology produces an unprecedented level of accuracy and surface finish, which allows the gears to transmit more torque and improve fuel efficiency.
- Gear teeth are cut using the 5-cut process to increase contact area to reduce load distribution and reduce stress on the gear teeth.
- Higher accuracy and surface finish also produces a quieter-running gear set.
- No break-in period.
- Less friction.
- Reduced wear allowing bearings and gears to last longer.
- Treated with REM® Isotropic Super Finishing (ISF) process.
- The REM® Isotropic Super Finishing (ISF) process removes the microscopic peaks in the material and creates a surface on the ring and pinion gears with a roughness of less than 10 µin Ra! This means that there is less friction between the gears, reducing wear by 95% and allowing the gears and bearings to run cooler and last longer.
- Non-directional surface that increases lubricant retention on the gear surface, reducing lubrication requirements.
- For Toyota 8.75” rear axles only. Will not fit 8” IFS Clamshell or 8" solid axles.
- Pinion Spline: 34-Spline
- Ring Gear Bolts: 12 bolts (Ring Gear Bolts not included)
- Ring Gear Diameter: 8.75”
- Ring Gear Rotation: Standard
| TOYOTA TACOMA – Manual Transmissions with or without E-Locker, Automatic Transmissions with E-Locker (2016-2023) 2016 Toyota Tacoma 2017 Toyota Tacoma 2018 Toyota Tacoma 2019 Toyota Tacoma 2020 Toyota Tacoma 2021 Toyota Tacoma 2022 Toyota Tacoma 2023 Toyota Tacoma |
