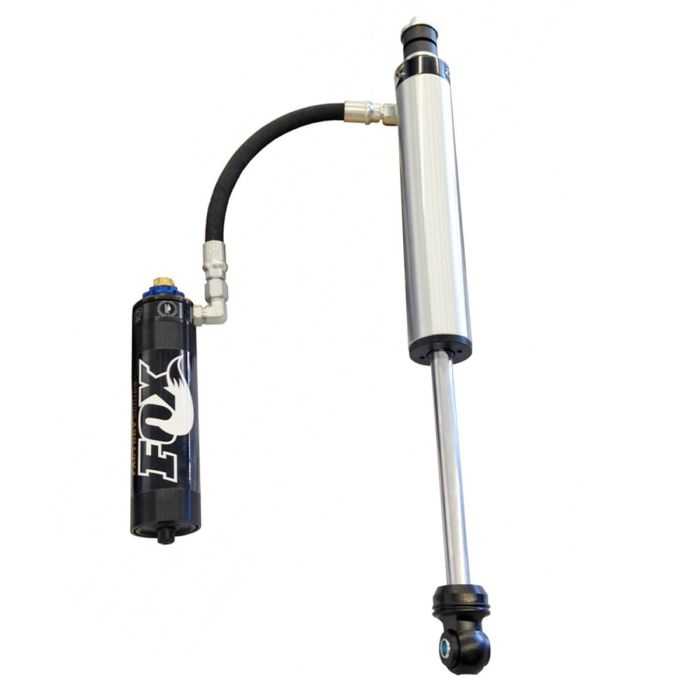

Fox 2.5 Factory Series Rear Remote Reservoir with DSC Adjuster

Rating:
% of 100
$1,582.37
Limited Stock!
SKU
Fox 2.5 Factory Series Rear Remote Reservoir wDSC Adjuster
This item ships FREE on orders over $100
No Sales Tax in USA for Registered Customers

Fox 2.5 Factory Series Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our off-road race shocks, so they’ve been thoroughly perfected in brutal conditions that you will probably never see.  “Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.”

Anodized aluminum external reservoirs allows for increase oil and nitrogen capacity while delivering striking race look. Dual Speed Compression (DSC) adjuster gives remarkable versatility and precise tuning.  Just a simple twist of either two adjuster knobs allows twelve separate low-speed and ten high-speed compression levels.  This line of bolt-on, Factory Series shocks provide improved damping in any terrain.  Experience for yourself the incredible performance and precise control that 2.5 Factory Series Reservoir shocks deliver.

  • Body: 2.5″ Smooth bore and honed seamless alloy body
  • Body Plating: Zinc-plated and double-clear coated for long lasting finish
  • External Reservoir: 2.5″ Smooth bore and honed seamless alloy reservoir
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 7/8″ hard chrome plated heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bearing: PTFE-lined, heat-treated, alloy steel spherical
  • Mounting: Direct replacement for stock and aftermarket lifts kits.

Sold as a pair.

Fits 03+ 4Runner, 05+ Tacoma and 07+ FJ Cruiser.  Includes required hardware and instructions.

AP-306926 (3" Lift) Measurements

  • 25.02" Extended
  • 15.65" Collapsed/li>
  • 9.37" Stroke

AP-306927 (1.5" Lift) Measurements

  • 23.02" Extended
  • 14.65" Collapsed/li>
  • 8.37" Stroke

  • 2005-2023 Toyota Tacoma
  • 2003-2009 4Runner
  • 2007-2014 FJ Cruiser

Fox_Logo

FOX LIMITED WARRANTY

FOX Factory, Inc., a California corporation having offices at 130 Hangar Way, Watsonville, CA 95076 ("FOX"), makes the following LIMITED WARRANTY with respect to its suspension products:

LIMITED ONE (1) YEAR WARRANTY ON SUSPENSION PRODUCTS

Subject to the limitations, terms and conditions hereof, FOX warrants, to the original retail owner of each new FOX suspension product, that the FOX suspension product, when new, is free from defects in materials and workmanship. Unless otherwise required by law, this warranty expires one (1) year from the date of the original FOX suspension product retail purchase from an authorized FOX dealer or from a FOX authorized Original Equipment Manufacturer where FOX suspension is included as original equipment on a purchased vehicle. If law requires a warranty duration of greater than one (1) year, then, subject to the other provisions hereof, this warranty will expire at the end of the minimum warranty period required by such law.

TERMS OF WARRANTY

This warranty is conditioned on the FOX suspension product being operated under normal conditions and properly maintained as specified by FOX. This warranty is only applicable to FOX suspensions purchased new from an authorized FOX source and is made only to the original retail owner of the new FOX suspension product and is not transferable to subsequent owners. This warranty is void if the FOX suspension product is subjected to abuse, neglect, improper or unauthorized repair, improper or unauthorized service or maintenance, alteration, modification, accident or other abnormal, excessive, or improper use.

Should it be determined by FOX in its sole and final discretion, that a FOX suspension product is covered by this warranty, it will be repaired or replaced, by a comparable model, at FOX's sole option, which will be conclusive and binding. THIS IS THE EXCLUSIVE REMEDY UNDER THIS WARRANTY. ANY AND ALL OTHER REMEDIES AND DAMAGES THAT MAY OTHERWISE BE APPLICABLE ARE EXCLUDED, INCLUDING, BUT NOT LIMITED TO, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR PUNATIVE DAMAGES.

This limited warranty does not apply to normal wear and tear, malfunctions or failures that result from abuse, improper assembly, neglect, alteration, improper maintenance, crash, misuse or collision. This limited warranty gives the consumer specific legal rights. The consumer may also have other legal rights which vary from state to state or country to country. Some states and countries do not allow the exclusion or limitation of incidental or consequential damages or warranties, and if dictated by law the above limitations or exclusions may not apply to you. If it is determined by a court of competent jurisdiction that a certain provision of this limited warranty does not apply, such determination shall not affect any other provision of this limited warranty and all other provisions shall remain in full effect.

THIS IS THE ONLY WARRANTY MADE BY FOX ON ITS SUSPENSION PRODUCTS AND COMPONENTS, AND THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION HEREIN. ANY WARRANTIES THAT MAY OTHERWISE BE IMPLIED BY LAW INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXCLUDED.
