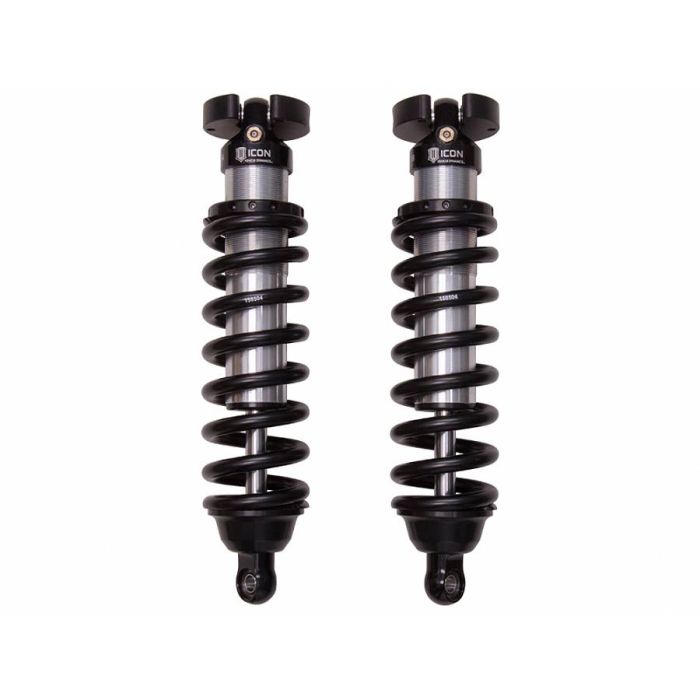

96-04 TACOMA/96-02 4RUNNER EXT TRAVEL 2.5 VS IR COILOVER KIT
These adjustable coil-over shocks have proven their strength and longevity for years on end and they keep going. These shocks offer the best ride quality and handling. They increase suspension travel and dramatically increase the capabilities of your front suspension.
These coil-overs are meant to be installed with a performance upper control arm set such as Icon's 58400 or others to ensure the proper amount of wheel travel and to prevent premature ball joint wear. Recommended tire size 285/75R16, wheel 16X8 with 4.5" back spacing.
The coilovers are preset to provide approximately 2" of lift; an optional spanner wrench is available for coil preload / ride height adjustments.

DESCRIPTION
- These extended travel coilovers have a little more droop capability than the standard travel coilovers and are intended to be used with Icon's 58400 or other aftermarket control arms
- Adjustable ride height from 0"-3"
- Race shock piston with flutter stack compression valving
- Cad-plated threaded body
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearing
- Completely re-buildable
- 2.5" shock diameter to prevent overheating
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
- 100% Made in the USA
- Nitro-steel shaft will not chip or rust like chrome shafts
- FREE Ground Shipping to the Lower 48!
WHEEL & TIRE FITMENT INFO
- Recommended tire size 285/75R16, wheel 16X8 with 4.5" back spacing
- 1995-2004 Toyota Tacoma
- 1996-2002 Toyota 4Runner
