2007+ Tundra Bilstein Shocks with Lift Block Kit
2007+ Tundra Bilstein Shocks & Lift Blocks
This Tundra shock and lift block kit is an extremely simple and affordable alternative to much higher priced systems. Bilstein's 5100 Height Adjustable shocks feature multiple snap-ring grooves on the body of the shock to accommodate different spring seat positions, allowing height adjustments from 0.5" to 2.5". Low Range Off-Road's 1" rear lift blocks are a great compliment for those front lift struts and matching rear shocks. We put these together into a convenient kit.
As with all 5100 series shocks, these new height adjustable shocks provide superior performance characteristics, feature bright zinc-plated bodies, and come with a lifetime aftermarket warranty. The shocks feature vehicle specific split digressive valving and Bilstein’s industry leading high gas pressure monotube technology.
Low Range Off-Road Rear Lift Blocks are not run of the mill suspension components.
Our Rear Lift Blocks are CNC cut and machined from solid 6061-T6 billet aluminum with a CNC-machined, pressed-in steel locating stud. Our machining and pressing technique achieves what others can't - consistence, accuracy, and quality.
Refinement of this design led to the inclusion of a 1-degree taper to achieve the least amount of drivetrain vibration. A CNC Machined "F" indicates which end of the block should be installed toward the front of the vehicle. We have worked closely with Toyota dealerships who demand the best components on their trucks to develop the best lift blocks around.
NOTE: These blocks provide 1" of rear lift when used with the tallest setting on Bilstein 5100 Height Adjustable Shocks. When used with shorter setting results may vary. In order to get 1" of lift our blocks are slightly taller than 1".

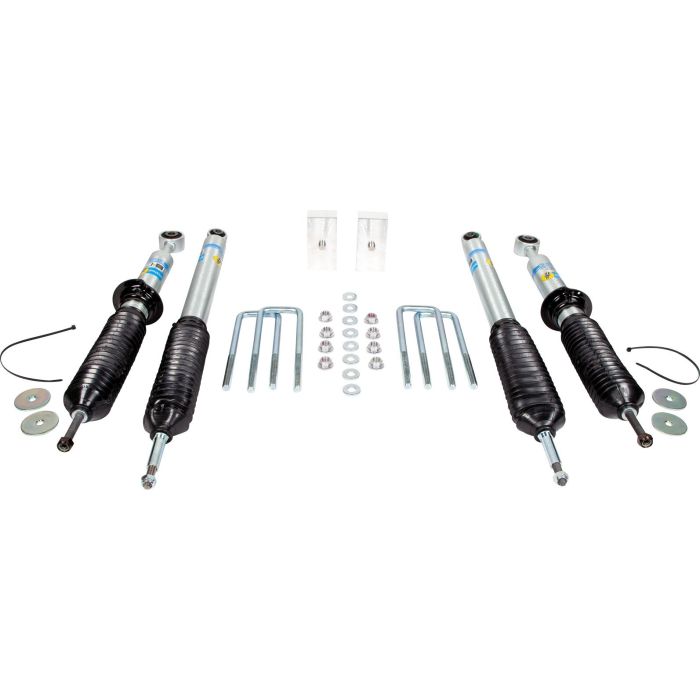

Includes:
- Front 07+ Tundra Bilstein 5100 Ride Height Adjustable Front Shocks, 0.5"-2.5" Lift (BE5-E428-H0)
- Rear 07+ Tundra Bilstein 5100 Series Rear Shocks for 0-1" Lift (BE5-E429-H0)
- Rear 1" LIft Blocks with U-bolt kit
- 4WD Models include Differential Drop Kit
Differential drop kits are not needed on 2WD models or if you have the 4WD model and are only going to adjust to the 0.5" height.
Installation requires a spring compressor to remove your factory spring from the factory coil spring assembly. Shock boots and a new upper nut are included.
Fits: 2007-2018 Toyota Tundra All Models including Rock Warrior.
- Front Shocks are Height Adjustable from .5" to 2.5" lift
- 1" Rear Lift Blocks are CNC machined from 6061-T6 aluminum
- 2007 Toyota Tundra
- 2008 Toyota Tundra
- 2009 Toyota Tundra
- 2010 Toyota Tundra
- 2011 Toyota Tundra
- 2012 Toyota Tundra
- 2013 Toyota Tundra
- 2014 Toyota Tundra
- 2015 Toyota Tundra
- 2016 Toyota Tundra
- 2017 Toyota Tundra
- 2018 Toyota Tundra
If you have any questions on the use or installation of this product please contact our customer support at (559)-549-6737
