2005+ Toyota Tacoma Lola Suspension Kit with Fox Shocks

$3,029.79
SKU
AP-306756
This item ships FREE on orders over $100
No Sales Tax in USA for Registered Customers
Stock availability may be affected by COVID-19 closures

All-Pro 05+ Tacoma Lola Suspension Kit with Fox Shocks

Fox 2.5 Factory Series IFP Front Coil-Overs - Fox 883-02-025:

Fox direct replacement shocks deliver race-winning performance in a simple direct replacement bolt-on shock. Each application has been rigorously tested by Fox Racing engineers to maximize suspension travel and performance both on and off the road. Direct replacement shocks are available in hundreds of applications from stock to lifted, as well as aftermarket kit replacements.
Body: Smooth-bore, clear coated, zinc plated, honed seamless alloy bodies
Components: Black anodized 6061-T6 billet aluminum
Shaft: 7/8″ hard chrome plated heat treated alloy steel
Piston: Race-developed high-flow piston design
Valving: Application specific valving to maximize off-road performance
Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
Oil: Specially formulated for ultimate performance at variable temperatures
Reservoir: Internal reservoir design separates shock oil from the high-pressure nitrogen
Adjustments: Spring pre-load ring; Nitrogen pressure; Compression valving; Rebound valving

All-Pro Upper Control Arms - 3500T-AP-A-ARM-1.25-PR:

  • Tubular chromoly upper A-arms
  • Uses 1.25″ uniballs (Made in the USA)
  • New flush mount hardware and spacers
  • Uniball spacers CNC machined from heat-treated stainless steel
  • Polyurethane bushings with thick inner sleeves
  • Includes grade 8 and high strength 12pt hardware
  • Powder coated gray finish
  • Maximum wheel backspacing = 4.50″

Add-A-Leaf - 4500T-3AAL:

3-Leaf Progressive Add-A-Leaf provides approximately 1.5″ of lift. Just remove the factory overload and say goodbye to that rough factory ride.

Rear Fox 2.0 Performance Series - FOX-980-24-679:

Body: 2.0″ Metal impacted 6061-T6 aluminum will resist rust over time
Body Plating: Clear-anodized for a durable finish
Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft: 5/8″ hard chrome plated heat treated alloy steel
Piston: Race-developed high-flow piston design
Valving: Application specific valving to maximize off-road performance
Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings: Quiet nitrile rubber allows for increased suspension articulation
Mounting: Direct replacement for stock and aftermarket lifts kits

Steel braided rear brake lines - 5500T-AP-R-05:

These steel braided brake lines are great for your lifted Toyota. Rear brake lines are 24″ and are designed for stock ride up to a 4″ lift. US DOT approved. Exceeds all requirements of the Department of Transportation Motor Vehicle Standard MVSS-106.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

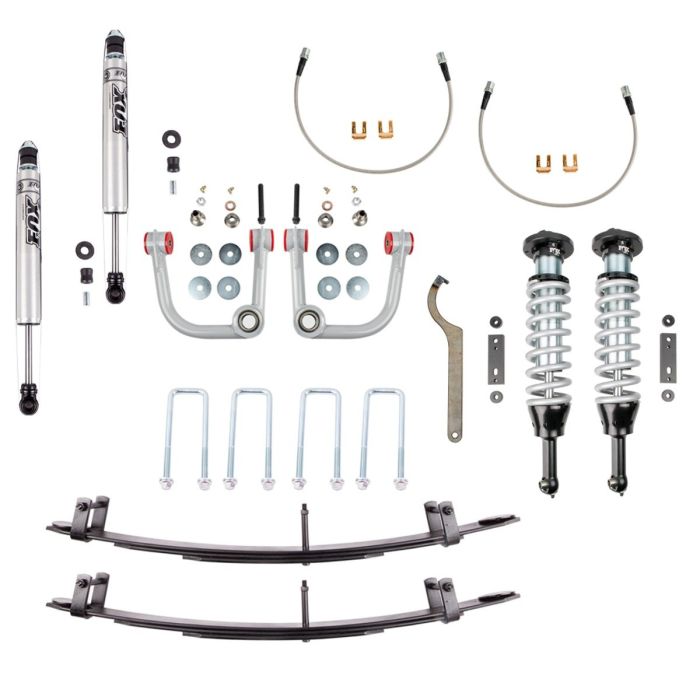

Kit includes:

  • 1 pair All-Pro Upper Control A-Arms (3500T-AP-A-ARM-1.25-PR)
  • 1 pair Fox 2.5 Factory Series IFP coil-overs (FOX-883-02-025)
  • 1 pair Add-A-Leafs (4400T-3AAL)
  • 1 pair Rear Brake Lines (5500T-AP-R-05)
  • 1 pair Fox 2.0 Performance Series IFP rear shock (FOX-980-24-679)

Lift:

  • 0-3″ adjustable front lift
  • 1.5″ rear lift

  • 2000-2006 Toyota Tundra
