2005+ Tacoma Rear 3" Leaf Springs | Standard Springs
All-Pro Standard Duty Leaf Springs
All-Pro Expedition Leaf Springs
The Expedition Leaf Springs were developed in conjunction with All-Pro’s Baja Taco R&D platform. The Baja Taco was developed as an all-around off-road vehicle with long-term expedition capabilities as a key design parameter. “Expedition-oriented products are a growing segment of the Toyota aftermarket,” says All-Pro’s Jon Bundrant. “We’ve always been at the forefront of development for Toyotas, from rockcrawlers to pre-runners, so the expedition products are a natural addition to our product line.”

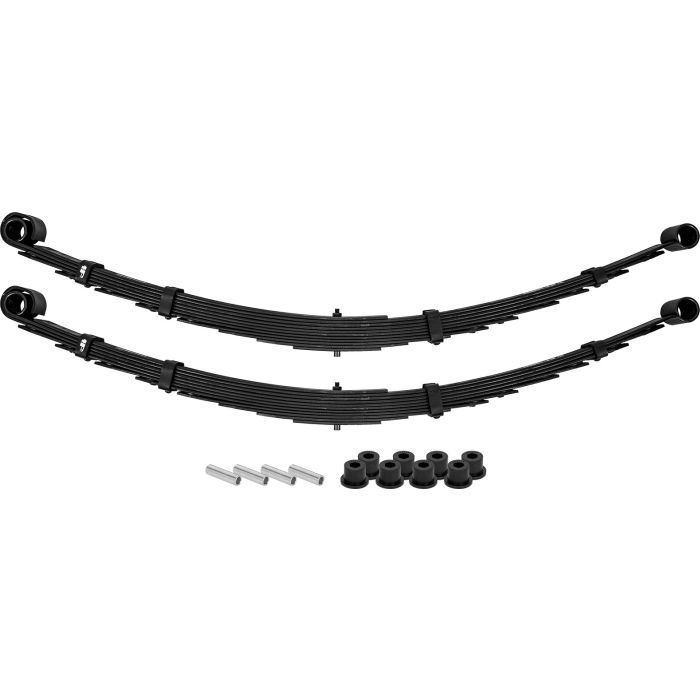

All-Pro Springs come with necessary bushings and sleeves
Standard Duty Leaf Spring Specifications:
– Number of Leaves: 10 + 1 Overload/Rebound
– Eyelet-to-Eyelet Length (Free): 54-3/8″ (1381 mm)
– Spring Rate: 187 lbs/in
Expedition Leaf Spring Specifications:
– Number of Leaves: 9 + 1 Overload/Rebound
– Eyelet-to-Eyelet Length (Free): 54-3/8″ (1381 mm)
– Spring Rate: 236 lbs/in
- A higher number of thinner leafs provides a smoother, progressive spring rate compared to fewer, thicker leaves
- Double “military” wrap provides extra strength for the main leaf
- “Torque Leaf”, an extra half-leaf at the top of the spring pack, increases anti-wrap properties without hindering travel or ride quality
- Diamond-cut leaf ends to eliminate stress points which may weaken leafs and lead to premature failure
- Teflon anti-friction pads between leafs provide smoother flex, lessen spring wear and reduce noise
- Leafs are shot-peened after forming to relieve stress
- Every completed spring pack is pre-cycled to their travel extremity for quality control and to reduce the likelihood of initial sag
- Comprehensive 12-month warranty for non-racing applications when properly installed
- Sold in Pairs
- 2005-2018 Toyota Tacoma
