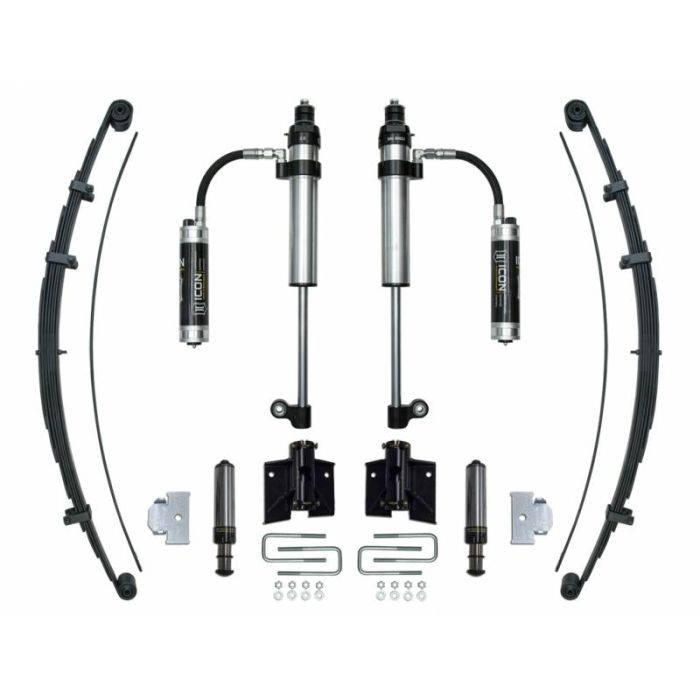

05-UP TACOMA RXT STAGE 2 SYSTEM

ICON RXT Multi-Rate Leaf Spring

• 3 user-adjustable spring rates for unique vehicle configurations
• Military wrap front eyelet for increased durability
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• Leaf tip inserts reduce noise and increase ride comfort
• Potential for increased wheel travel when used with RXT shock (up to 20%) without sacrificing up-travel
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Direct bolt-in to OEM spring location makes for an easy install

• Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
• Vehicle-specific tuned shocks provide increased damping and oil volume
• CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
• Easy-to-adjust detented knobs offer quick adjustability without the use of tools
• 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• Shocks are fully rebuildable and revalveable
• Simple and straightforward installation

• 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• Position sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• Heavy duty 1 ¼” CNC machined nitro steel shaft
• Multi-stage CAD plated body for maximum corrosion resistance
• Double sealed high pressure Schrader valve
• Operating range of 50 – 250 PSI
• Replaceable noise reducing striker pad
• Fully serviceable
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability

• 2005+ Toyota Tacoma
