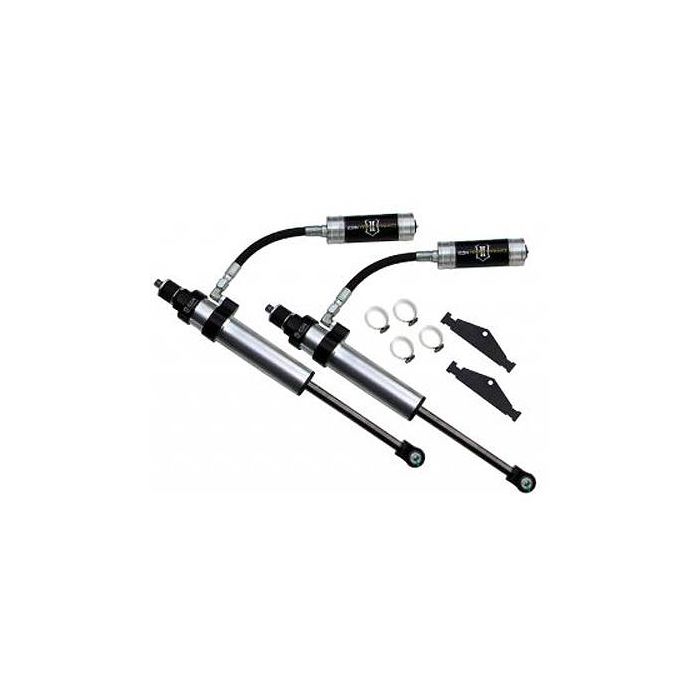

05-UP TACOMA 0-1.5" REAR 2.5 VS RR CDCV PAIR
These 2.5" VS Series shocks feature polyurethane upper mounting bushings for the top stud along with COM-10 bearing type lower mounts for direct OE fitment. Application specific heavy duty reservoir mounts. Nitrogen charged mono-tube design with remote reservoir. Radial Flow Technology. Dynamic Heat Transfer System.
Premium grade shock oil for high performance in extreme temperatures. Two piece piston design for unsurpassed performance and ride quality on- and off-road. 7/8 polished nitro steel shaft does not flake and pit as easy as the industry standard chrome shafts.
We carry these in a couple different lengths. Icon says their standard size is good for 0-1.5" of lift and measures 14.22" collapsed x 24.35" extended. We also carry a custom built extended version of these that is good for 2.5"-3.5" lift and measures 15.9" collapsed x 26.8" extended. Please note that Icon's lifetime warranty doesn't apply to their custom built shocks.
FREE Ground Shipping to the Lower 48!
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
DESCRIPTION
- Sold as a pair
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- Polyurethane bushings and forged steel mounting stems for OE factory type fitment
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- 100% Rebuildable
- 100% Revalveable
- Made in the U.S.A.
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- FREE Ground Shipping to the Lower 48!
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir creating 10 levels of compression damping force ranges. Controlling the amount of oil flow externally allows optimizing of ride quality for varying terrains. With the addition of an ICON CDC Valve a different tune is required on the working piston to get the ride quality range of adjustment to softer than standard at the “S” setting and much firmer than standard at the “H” setting. The ICON CDC Valve piston is custom tuned per application with different valve stacks because not all shocks or applications are equal. Adding on the CDC Valve is not a one size fits all if you want optimum performance.
The CDCV external knob allows for 10 levels of adjustment. Each detent from S-H is a noticeable difference in ride. When engineering this feature into each shock application, the main shock piston is re-calibrated such that setting “4” is equivalent to the non CDCV version. This allows for both a softer and firmer ride than the same application without this option. The ICON CDC Valve brings a new thinking to the table with an upgrade option that offers true ride quality diversity.
