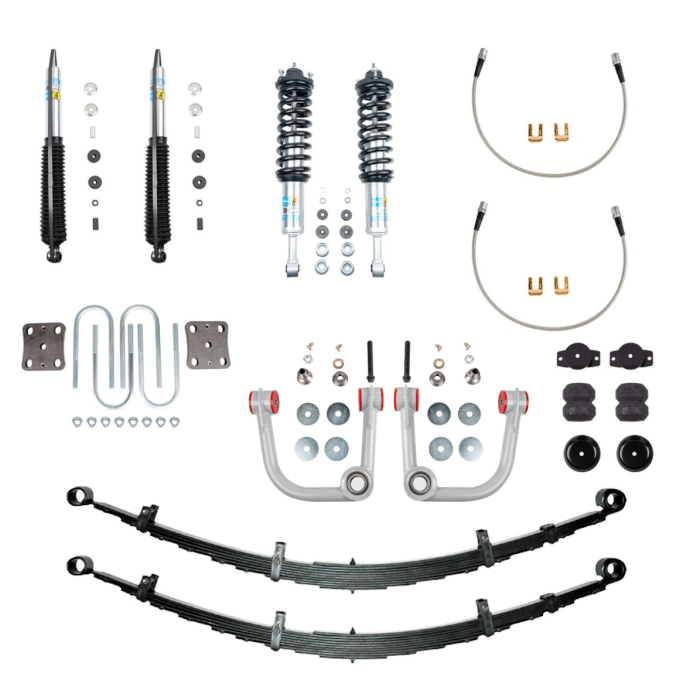

2005+ Toyota Tacoma Suspension Kit with Bilstein Shocks assembled Expedition Springs and Timbren Bum
Save time and money by purchasing our full all-pro suspension kit. Our All-Pro Suspension Kit with Bilstien 6112 Struts and rear 5100 shocks is intended for those who want a complete and well balanced suspention kit at a great price. 6112 struts come unassembled or you can have us put them together for you for a small fee. These struts can be assembled to provide up to 2.5"" lift. Choose between Standard and Expedition leaf springs. Optional bumpstops are available.
Each kit comes with a pair of All-Pro tubular chromoly upper control arms, extended brakes lines, and a u-bolt flip kit.
Bilstein 6112 Series Front Coil-Over; BIL-46-241627:
The 6112 Series optimizes off-road and on-road capabilities with a 60mm digressive piston for increased damping control. This kit features an adjustable spring seat, which allows vehicle leveling, larger tires, and increased ground clearance.
Features and Benefits:
-
- Large 60mm monotube for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston for improved ride comfort and control over rough terrain
- Custom engineered cold wound linear springs for enhanced vehicle control
- Monotube design for consistent, fade-free performance
- Application specific for maximum performance
- Reuses OEM top mount and rubber isolator
- Made in the USA
- Kit includes (2) front 60mm shocks, (2) spring seats and (2) springs
- Comes unassembled – Assembly option is available.
- Assembled Coilover option includes new strut mounts.
All-Pro Upper Control Arms; 3500T-AP-A-ARM-1.25-PR:
-
-
- Tubular chromoly upper a-arms
- Uses 1.25″ uniballs (Made in the USA)
- New flush mount hardware and spacers
- Uniball spacers CNC machined from heat-treated stainless steel
- Polyurethane bushings with thick inner sleeves
- Includes grade 8 and high strength 12pt hardware
- Powder coated gray finish
- Maximum wheel backspacing = 4.50″
-
All-Pro Leaf Spring Pack (choose Standard or Expedition)
-
-
- A higher number of thinner leafs provides a smoother, progressive spring rate compared to fewer, thicker leaves
- Double “military” wrap provides extra strength for the main leaf
- “Torque Leaf”, an extra half-leaf at the top of the spring pack, increases anti-wrap properties without hindering travel or ride quality
- Diamond-cut leaf ends to eliminate stress points which may weaken leafs and lead to premature failure
- Teflon anti-friction pads between leafs provide smoother flex, lessen spring wear and reduce noise
- Leafs are shot-peened after forming to relieve stress
- Every completed spring pack is pre-cycled to their travel extremity for quality control and to reduce the likelihood of initial sag
- Comprehensive 12-month warranty for non-racing applications when properly installed
- Use of lifting blocks or shackle flip kits void all warranty on All-Pro Leaf Springs
-
Bilstein 5100 Series Rear Shocks; BIL-33-330237:
Bilstein 5100 Series rear shocks are designed specifically to help your lifted Tacoma reach its pinnacle in ride performance, while supplying the correct tuning and length for your specific lift.
Features include:
-
-
- Individually engineered for a wide array of specific vehicles and lift combinations
- Monotube gas pressure technology
- Easy to install; direct bolt-on; no modification required
- Multi-layer zinc finish is the most durable in the industry
-
Steel braided rear brake lines; 5500T-AP-R-05:
These steel braided brake lines are great for your lifted Toyota. Rear brake lines are 24″ and are designed for stock ride up to a 4″ lift. US DOT approved. Exceeds all requirements of the Department of Transportation Motor Vehicle Standard MVSS-106.
Kits Contain:
- 1 pair Bilstein 6112 Coil-Overs (BIL-46-241627)
- 1 pair All-Pro Upper Control A-Arms (3500T-AP-A-ARM-1.25-PR)
- 1 pair Bilstein 5100 Shocks (BIL-33-330237)
- 1 pair All-Pro Standard Leaf Pack (add Expedition Leaf Pack for $50) (4505T-AP-3)
- 1 each All-Pro U-Bolt Flip Kit (4400T-AP-05)
- 1 pair steel braided rear brake lines
Lift:
- 0-3″ adjustable front lift
- 2-1/2 to 3″ rear lift with standard springs
- 3″ rear lift with expedition springs
- 2005-2018 Toyota Tacoma
